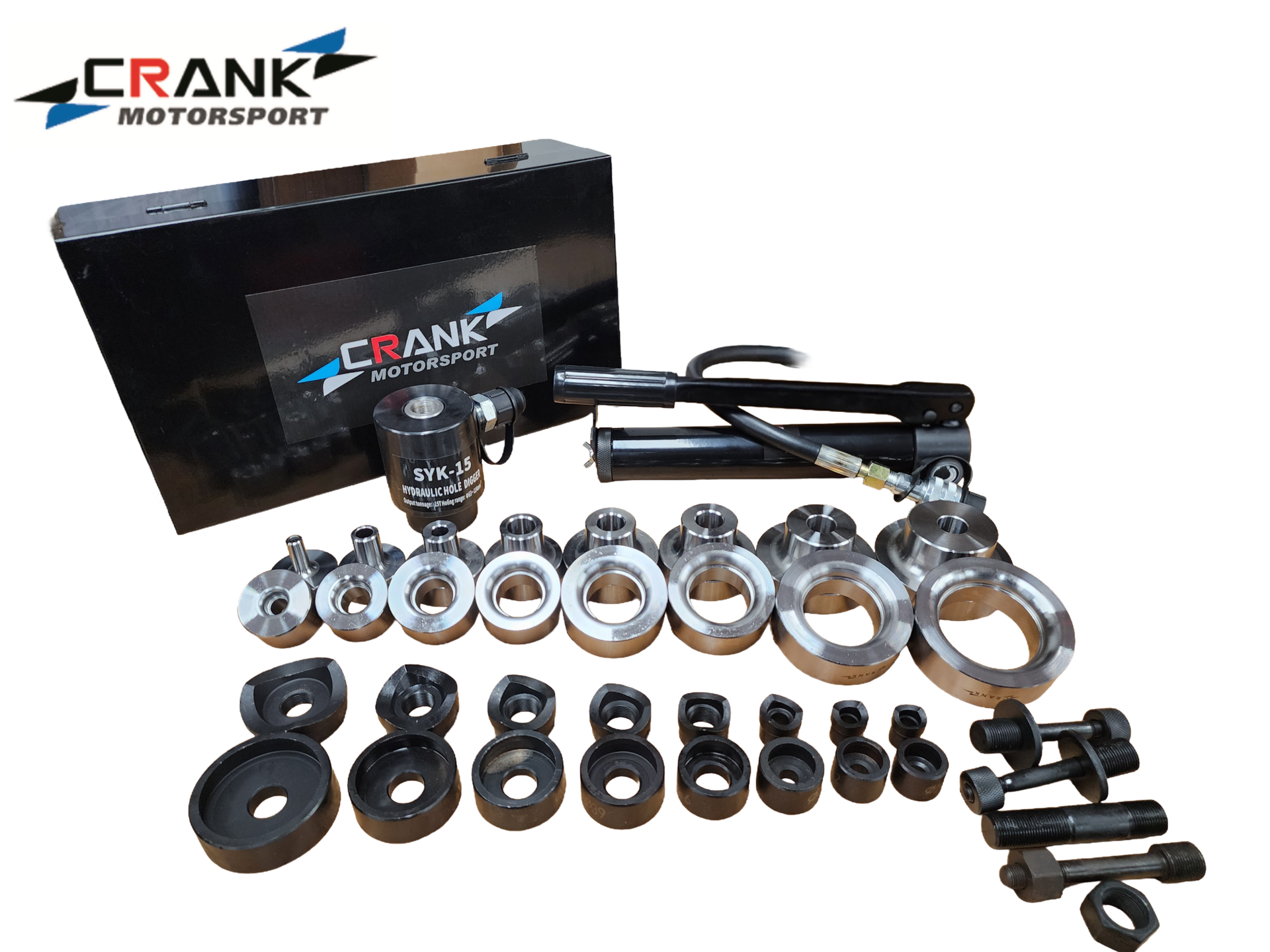

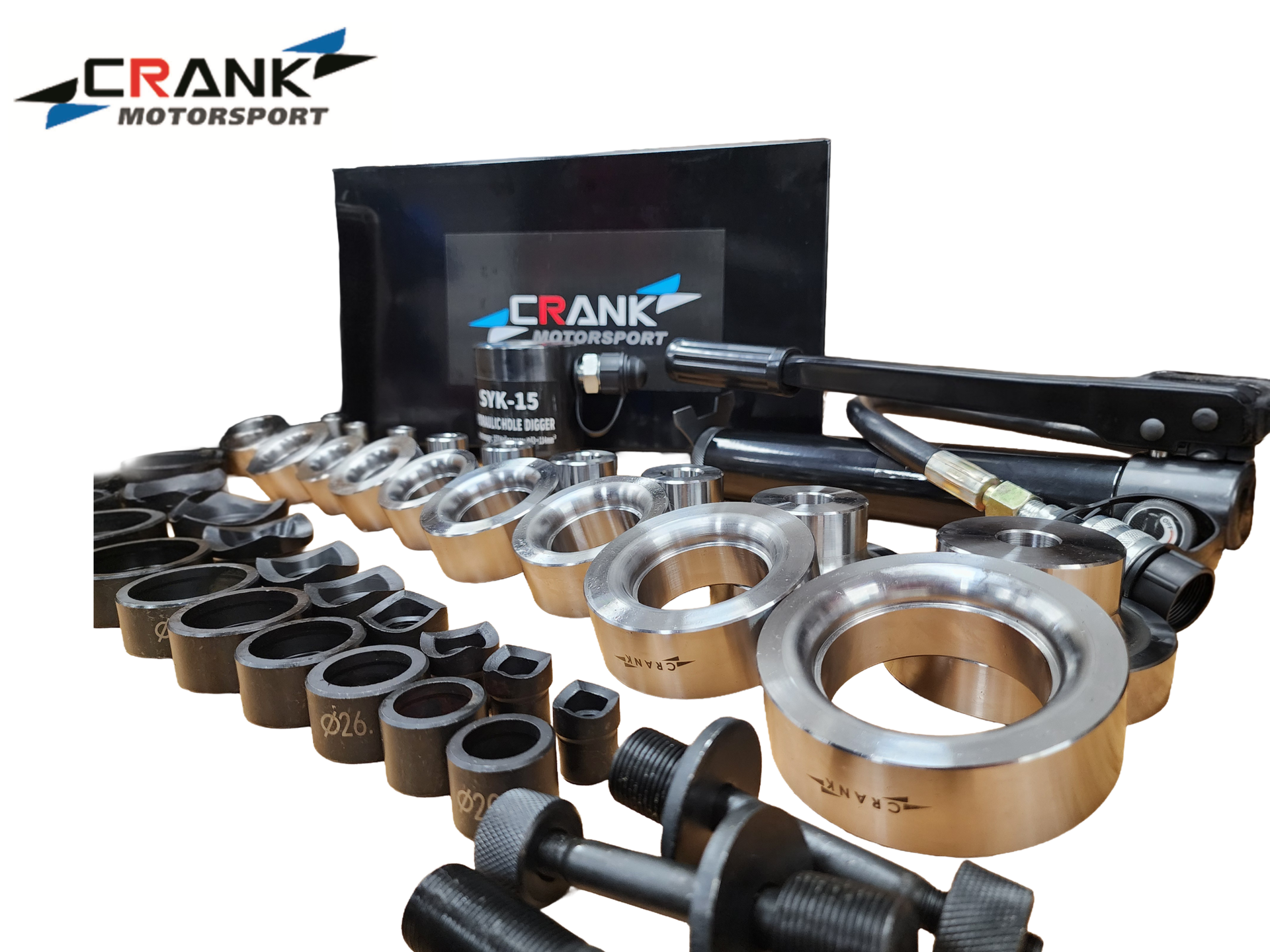

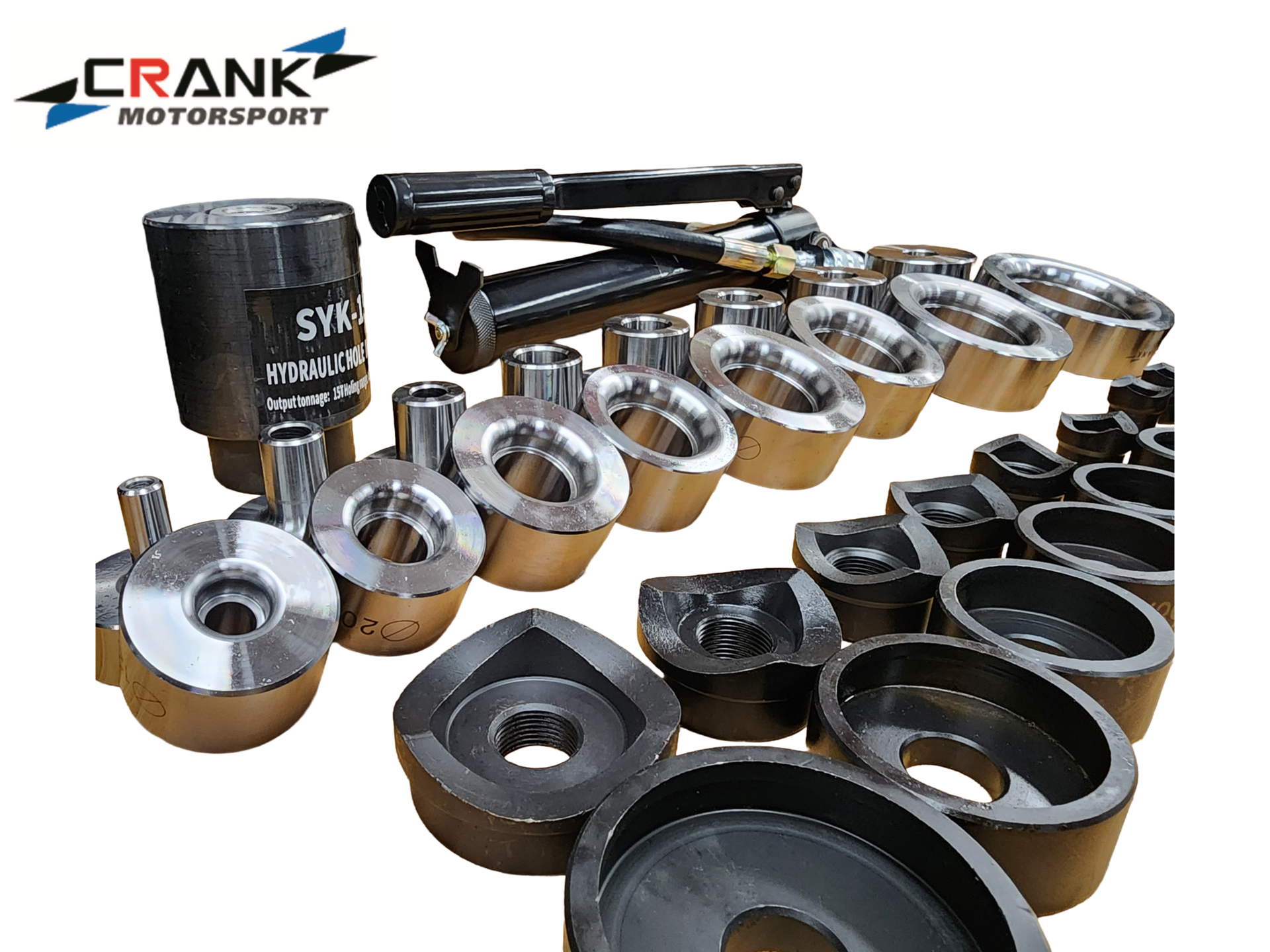

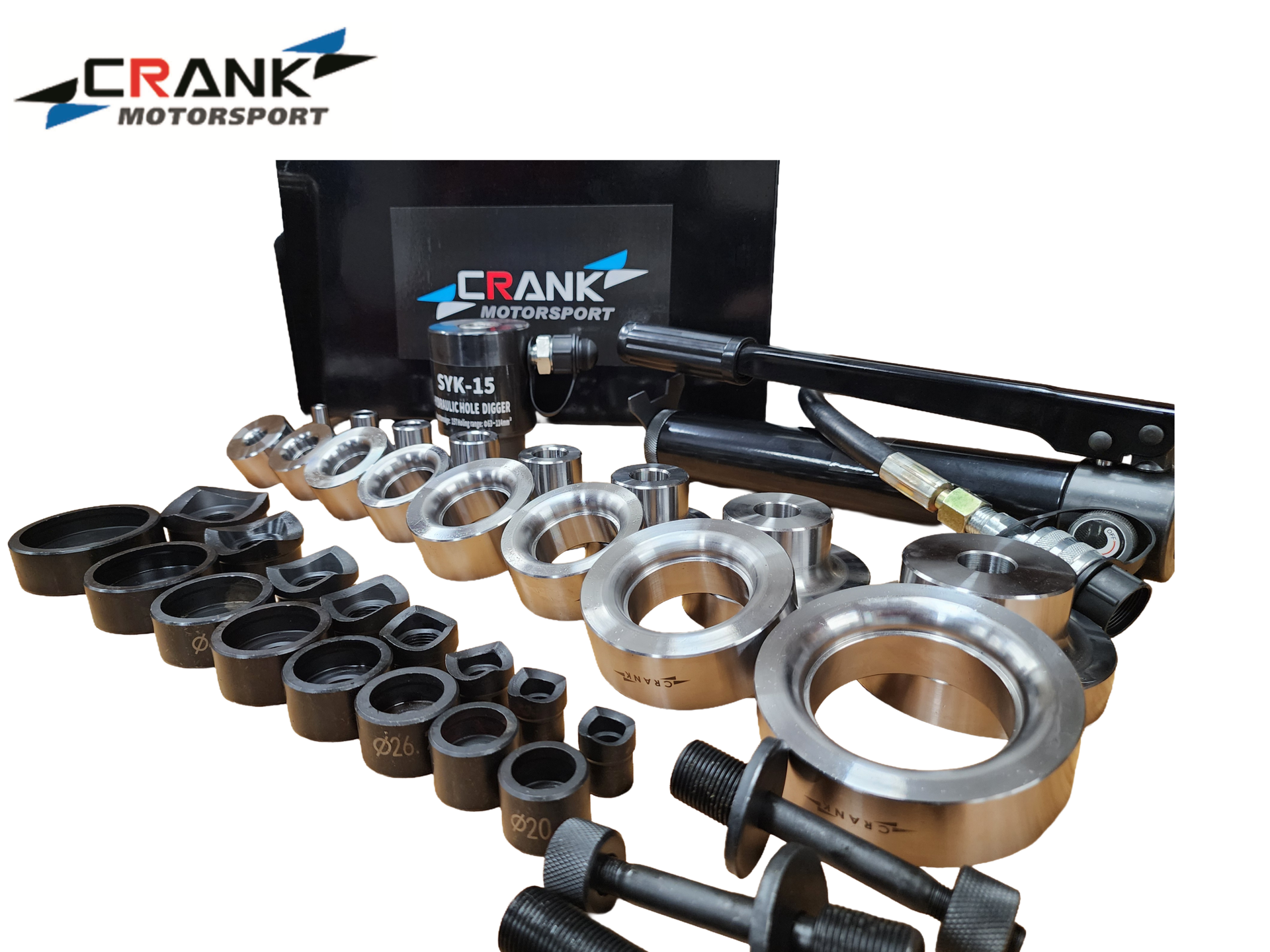

Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set
Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set

Crank Motorsport 36 Pcs Dimple Die + Hydraulic Hole Punch Kit, 16–63 mm Cut, 1/2–2.5" RADIUS Set

Professional-grade hole punch and radius dimple die kit, designed for precision sheet metal fabrication. Built for workshops and fabricators who need clean cuts and smooth, professional dimples every time.

Forget messy hole saws and mismatched tooling. This system ensures perfect alignment between cutter and dimple dies for consistent, high-quality results.

Key Features:

  • Complete Kit: 36 pcs cutter and dimple die set
  • Range: Covers cutting and dimple sizes from 12 mm up to 63 mm
  • Material: Heat-treated chromoly steel dies for maximum durability and strength
  • Hydraulics: Heavy-duty 15-ton mobile hand pump with ramp
  • Precision Fit: Dies matched to cutters for perfect fitment and finish
  • Portable: Cut and dimple anytime without a workshop press
  • Performance: Built for workshop and on-site fabrication use
  • Note: No metal carry case included

Cutter Sizes (mm):

20, 22, 26, 32, 39, 43, 51, 63

Maximum Cut Thickness:

  • Mild Steel: 3.5 mm
  • Stainless Steel: 2.0 mm

Dimple Sizes (mm):

12, 20, 26, 32, 39, 43, 51, 63

(Imperial reference: 1/2", 3/4", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2")

Maximum Dimple Thickness:

Up to 1.8 mm

Radius Dimple Design – Pros & Cons

Advantages:

  • Smooth stress distribution reduces risk of cracking
  • Ideal for aluminium panels
  • Cleaner and more professional appearance

Considerations:

  • Limited metal thickness capability (up to 1.8 mm)
  • Dimples are less pronounced compared to taper-style dies

Shipping & Delivery:

Payment required within 4 business days. Item will be sent out the next business day once payment is confirmed. Tracking number will be provided, and all goods are inspected prior to dispatch.

Estimated delivery to metro areas:

  • VIC: 1–2 business days
  • NSW & SA: 2–3 business days
  • QLD: 3–5 business days
  • WA, NT & TAS: 5–7 business days

Delivery to regional areas may take longer.

Pick-up Available:
CRANK MOTORSPORT, Croydon South VIC

Listing is for the full 36 pcs dimple die hole punch kit with hydraulic hand pump (no steel case included).
